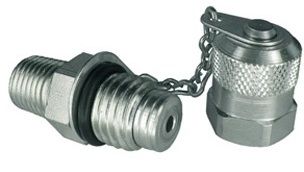

B-Series Sample Valve

For Pressurized systems

The B-Series is designed for high pressure, low viscosity oil sampling and is the most rugged and versatile sample valve available. It allows you to take hot, circulating, live fluid samples, reducing the time needed to extract a sample, while gaining a more representative sample and avoiding external contamination for a more accurate oil analysis result.

Applications

Features

• Popular industrial Euro-Probe style sampling valve with metric 16×2 probe thread
• Metal ball and seat valve allows pressure testing to 5800 psi (400 bar)
• Thread-on sample probe helps to control flow
• Rugged metal cap with backup seal
• Carbon steel valve has corrosion resistant zinc-nickel plating

Specificiations

• Sampling Range: 0-750 psi (0 – 5.17 MPa) (Note: sampling pressure greater than 125 psi (0.86 MPa) is probe dependent)
• Working Pressure: 5800 psi (40 MPa)
• Seal Material Temperature Range: Nitrile -40C to 115C (-40F to 239F)
• Valve Material: Carbon steel with corrosion resistant zinc nickel plating
• Valve Overall Size (L x W): 1.9” x 0.75” (approx.)

Standard Sample Probe

Download PDF

Download the B-Series Sample Valve brochure for a listing of all available valve sizes and accessories.
